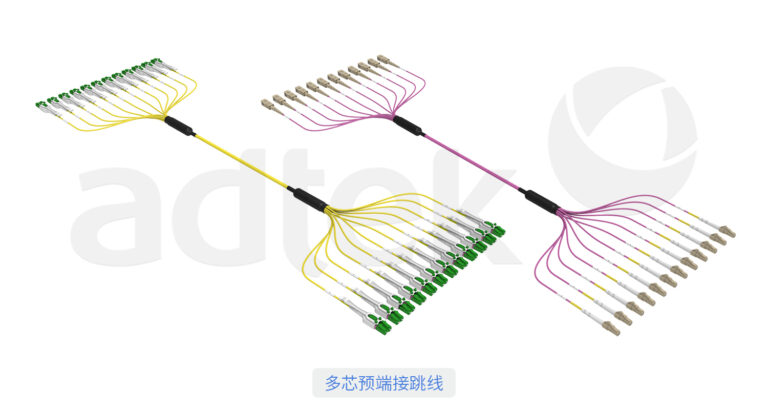

Application environment
Product specification

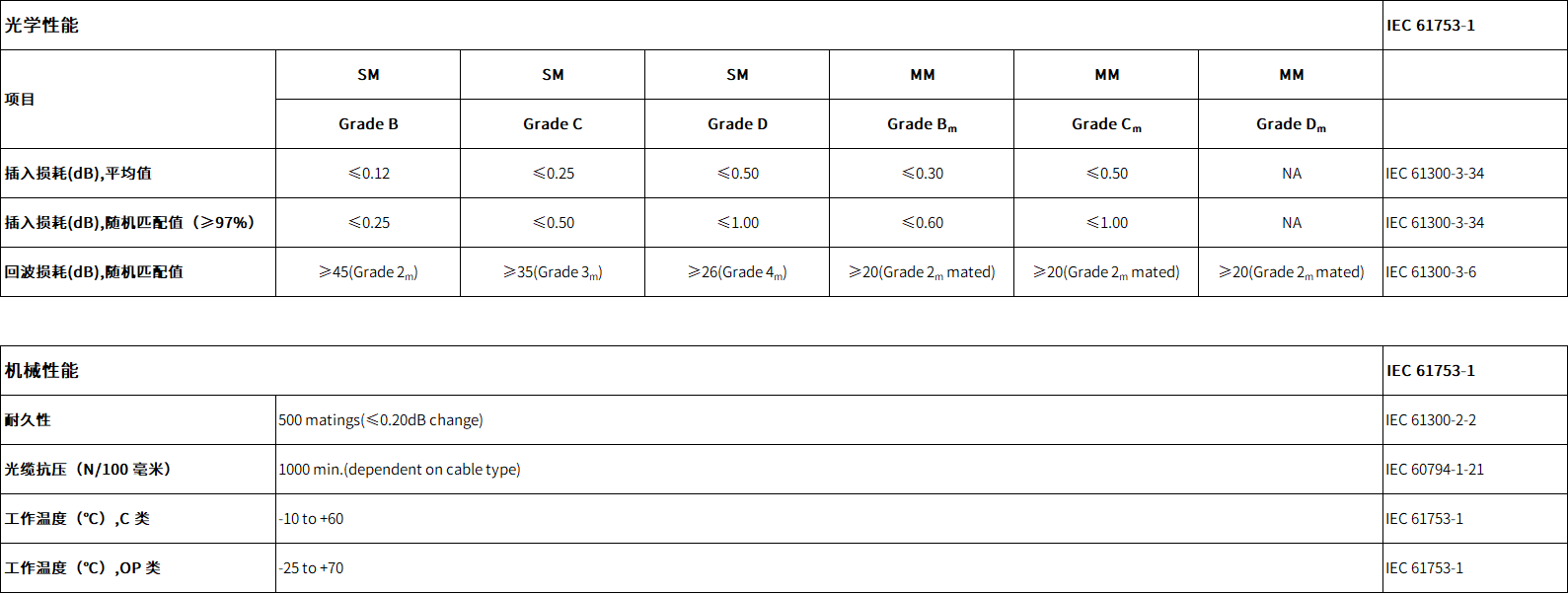

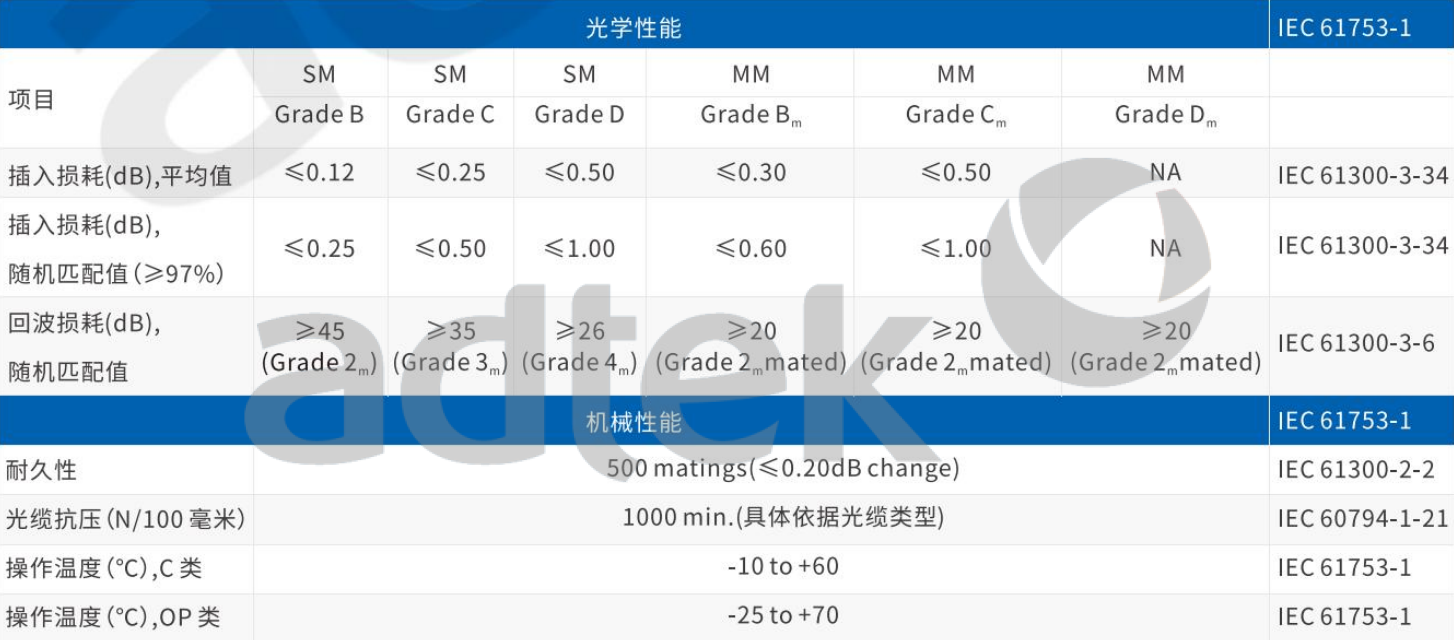

| 光学性能 | IEC 61753-1 | ||||||
| 项目 | SM | SM | SM | MM | MM | MM | |
| Grade B | Grade C | Grade D | Grade Bm | Grade Cm | Grade Dm | ||
| 插入损耗（dB），平均 | ≤0.12 | ≤0.25 | ≤0.50 | ≤0.30 | ≤0.50 | NA | IEC 61300-3-34 |
| 插入损耗(dB),匹配值(≥97%) | ≤0.25 | ≤0.50 | ≤1.00 | ≤0.60 | ≤1.00 | NA | IEC 61300-3-34 |
| 回波损耗(dB)，随机匹配值 | ≥45(Grade 2m) | ≥35(Grade 3m) | ≥26(Grade 4m) | ≥20(Grade 2m mated) | ≥20(Grade 2m mated) | ≥20(Grade 2m mated) | IEC 61300-3-6 |
| 机械性能 | IEC 61753-1 | ||||||
| 耐久性 | 500次配对（≤0.20dB change） | IEC 61300-2-2 | |||||
| 光缆抗压(N/100mm) | 1000 分钟（取决于光缆类型） | IEC 60794-1-21 | |||||
| 工作温度(℃), 类别C | -20 至 +60 | IEC 61753-1 | |||||
| 工作温度(℃)，类别OP | -25 至 +70 | IEC 61753-1 | |||||
Configuration selection
| 应用环境 | ||
| 室内 | 室外 | 室内/室外 |
| 光缆类型 | ||
| 迷你光缆 | 铠装松套管型光缆 | 配线电缆 |
| 自承式光缆 | 松套管型光缆 | |
| 光缆外径(OD) | ||
| 2.0mm | 3.0mm | 4.5mm |
| 6.7mm | 8.1mm | 12.5mm |
| 定制 | ||
| 光纤芯数(f) | ||
| 2 | 4 | 6 |
| 8 | 12 | 16 |
| 24 | 32 | 48 |
| 72 | 96 | 120 |
| 144 | 288 | 576 |
| 定制 | ||
| 光纤模态 | ||
| G.652.D | OM1 | |
| G.657.A1 | OM2 | |
| G.657.A2 | OM3 | |
| OM4 | ||
| OM5 | ||
| 护套颜色 | ||
| 黄色 | 柠檬绿 | |
| 水蓝色 | 黑色 | |
| 玫红色 | 定制 | |
| 护套材质 | ||
| PVC | PE | |
| LSZH | HDPE | |
| 防火等级 | ||
| OFNR | Cca | |
| OFNP | Dca | |
| B1ca | Eca | |
| B2ca | Fca | |
| 接头类型 | |
| End A | End B |
| LC | LC |
| SC | SC |
| FC | FC |
| ST | ST |
| E2000(LSH) | E2000(LSH) |
| LC Duplex | LC Duplex |
| LC Uniboot | LC Uniboot |
| LC Uniboot with Reversable | LC Uniboot with Reversable |
| SC Duplex | SC Duplex |
| CS | CS |
| SN | SN |
| MDC | MDC |
| Unterminated | |
| 接头尺寸 | |
| End A | End B |
| 0.9mm | 0.9mm |
| 2.0mm | 2.0mm |
| 物理接触类型 | |
| End A | End B |
| UPC | UPC |
| APC(8°) | APC(8°) |
| 光学性能 | |
| End A | End B |
| Grade B | Grade B |
| Grade C | Grade C |
| Grade D | Grade D |
| 分支长度(mm)* | |
| End A | End B |
| Fanout 500 | Fanout 500 |
| Staggered 30, starts at 200 | Staggered 30, starts at 200 |
| 定制 | 定制 |
| NA | |
| 拖眼方式 | |
| End A | End B |
| NA | NA |
| 带拉网 | 带拉网 |
| 带波纹管 | 带波纹管 |
| 带拉网与波纹管 | 带拉网与波纹管 |
* 详情请与我们的工程师团队联系
| A-A |
| A-B |
| NA |
